FSMMSH
Manufacturer:
TE Connectivity
Mfr.Part #:
FSMMSH
Datasheet:
Description:

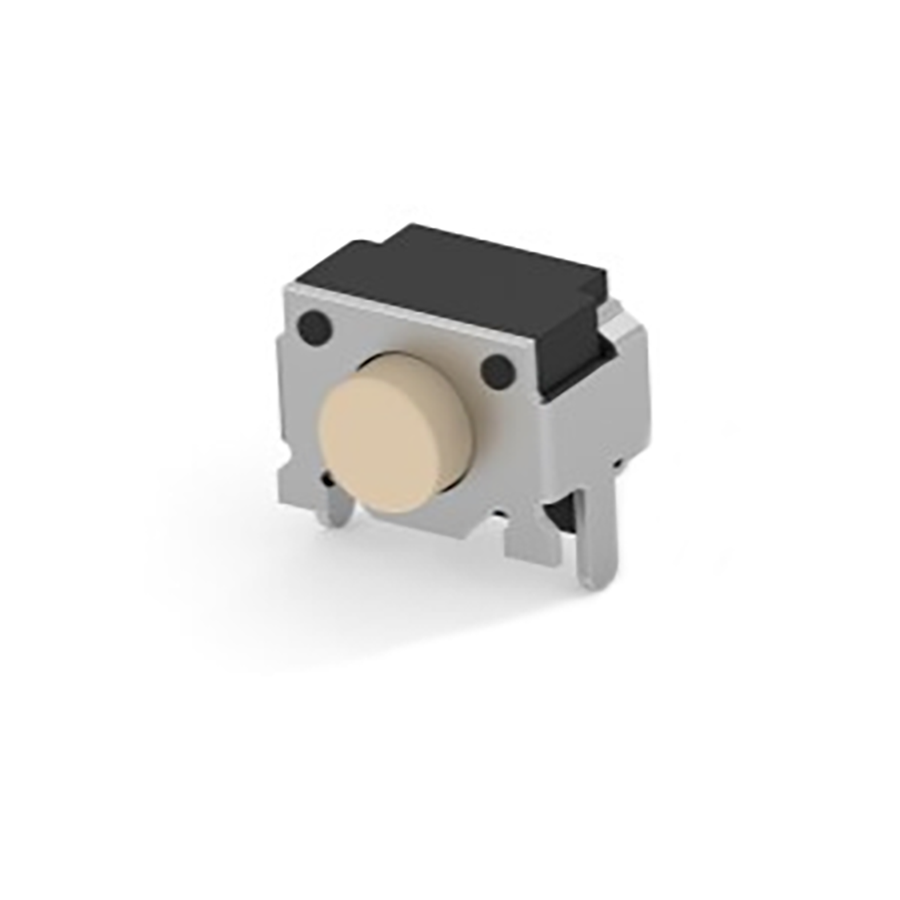

Tactile Switches SMD/SMT SPST-NO Off-Mom 1.6 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 4.5 mm |
| Width | 4.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 3.3 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Type | Switch |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| ELV | Compliant |
| Actuator Length | 8.382 mm |
| Throw Configuration | SPST |
| Contact Resistance | 500 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 1.6 N |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Life (Cycles) | 100 kCycles |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mounting Direction | Right Angle |
Stock: 451
Distributors
pcbx
pcbxUnit Price$0.62153
Ext.Price$0.62153
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62153 | $0.62153 |
| 10 | $0.59930 | $5.99300 |
| 25 | $0.51381 | $12.84525 |
| 50 | $0.49509 | $24.75450 |
| 100 | $0.47705 | $47.70500 |
| 300 | $0.46008 | $138.02400 |
| 500 | $0.44371 | $221.85500 |
| 1000 | $0.35052 | $350.52000 |
| 3000 | $0.34492 | $1034.76000 |
| 5000 | $0.33940 | $1697.00000 |
